Tri-band DOCSIS 3.1 Cable Modem Router

with Wi-Fi 6E, Voice and Extended Downstream 1218MHz

CODA5384

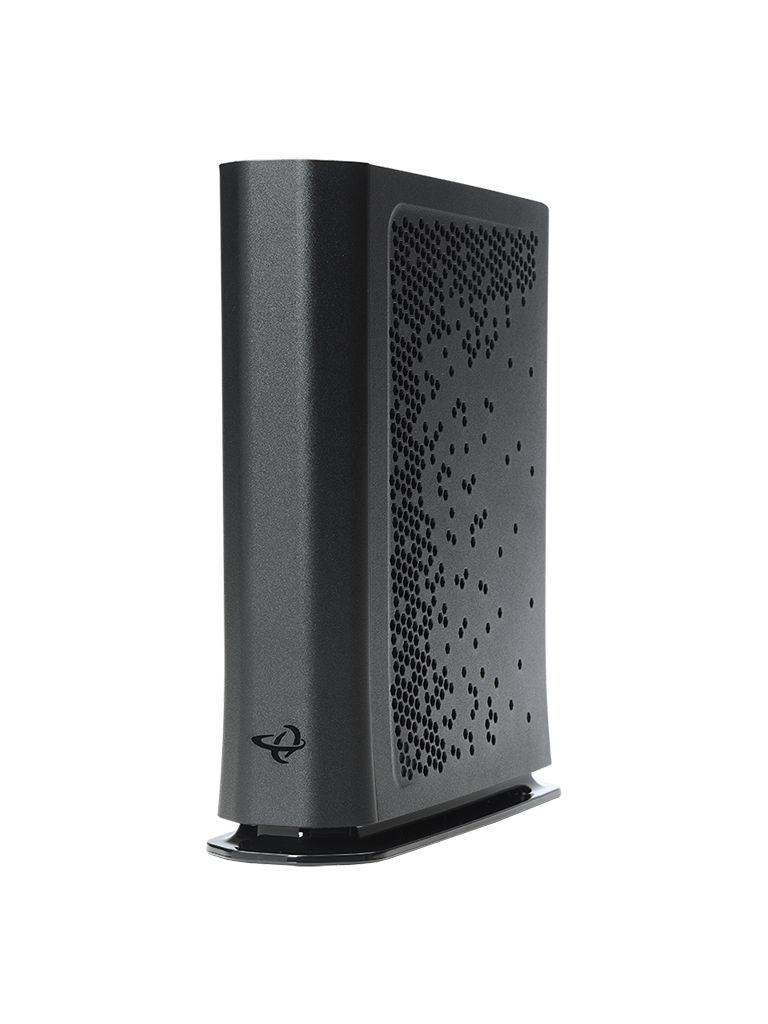

The powerful CODA5834 cable gateway forms the heart of today and tomorrow’s wireless network. The gateway supports DOCSIS 3.1 – up to 6 Gbps* downstream - and next generation Wi-Fi 6E Tri-Band Router speeds up to 11 Gbps. The result is the ultimate digital home experience: stunning 4K and 8K streaming, stutter-free VR applications, a flawless smart home, video conferencing and more. And that’s not all. The CODA5834 offers 3 Ethernet ports with one being 2.5GigE, along with two HD voice ports. This powerful hub can meet virtually any home and small business networking need.
Only sold through Service Providers

Supports DOCSIS 3.1

The CODA5834 supports DOCSIS 3.1 to take Internet speeds to a whole new level, increasing the capacity of HFC networks by more than 50 percent and reducing latency. Your customers can connect more devices, enjoy richer digital experiences, and get fast, reliable Internet service to meet today and tomorrow’s needs.



Switchable Frequency

The CODA5834 features a software switchable return path that enables operators to remotely change band split options between (5-85MHz/108-1218MHz) or (5-204MHz/258-1218MHz) at any time.  There’s no need to swap out hardware or send out a technician.  This flexible and cost-effective solution enables you to seamlessly upgrade customers to higher-tier upstream speeds to meet the increased upstream bandwidth demands of video conferencing, IoT and virtual reality applications.



Extended Downstream up to 1218 MHz

Future proof your network and offer even faster speeds by expanding the downstream frequency range up to 1218MHz.



Faster Wi-Fi 6E with Tri-Band

This CODA5834 is equipped with a third band in the 6GHz frequency which can be used for Wi-Fi backhaul. Utilizing seven (7) continuous 160MHz channels, the CODA5834 can support multiple clear channels, free from neighborhood Wi-Fi interference. It uses the 2.4GHz and 5GHz bands for common IoT and mobile device support.



Gigabit Wired Connections

The CODA5834 supports a 2.5 GigE port along with two Gigabit Ethernet ports to provide a wired connection to an HDTV, home office router and more.



Easy to Setup, Secure and Manage

Installation is a snap with the CODA5834. Pre-configured and pre-enabled WiFi security via WiFi Protected Setup (WPS) means that end users can quickly setup a secure wireless network without any manual configuration. You get comprehensive remote management and troubleshooting with SNMP, TR-069 and TR-369. And the CODA5834 supports the Hitron ecosystem, including MyHitron+ (a mobile application that lets end users manage their network) and HitronCloud management and analytics for service providers.

Key Specifications

  • DOCSIS 3.1 2×2 OFDM/OFDMA
  • DOCSIS 3.0 32×8 Channel Bonding
  • Switchable Upstream: 5-85MHz / 5-204MHz
  • Extended Downstream 1218MHz
  • 4×4 2.4GHz 802.11ax, 4×4 5GHz 802.11ax and 4×4 6GHz 802.11ax Tri-band Concurrent MU-MIMO Internal Antennas
  • 24 SSIDs (8 SSIDs per Radio)
  • Individual Configuration for each SSID
  • One 2.5 GigE and two 1 GigE Ports
  • Two HD Voice Ports, SIP and MGCP Support
  • TR-069, TR-369 and Remote Management
  • Hitron Ecosystem Support (OptiMy, HitronCloud, MyHitron+)
  • Low Latency DOCSIS

Tri-Band WiFi 6E Cable Modem Routers

Modem Type
DOCSIS 3.1 (32x8)
DOCSIS 3.1 (32x8)
Frequency
Switchable 5-85/5-204MHz
Extended Downstream 1218 MHz
Switchable 5-85/5-204MHz
Extended Downstream 1218 MHz
WiFi
4×4 5GHz 802.11ax / 4x4 2.4GHz 802.11ax / 4×4 6GHz 802.11ax
4×4 5GHz 802.11ax / 4x4 2.4GHz 802.11ax / 4×4 6GHz 802.11ax
Wired LAN
3x GigE / 1x 2.5 Gbps / 2x 1 Gbps
3x GigE / 1x 2.5 Gbps / 2x 1 Gbps
Voice
---
2 HD Voice Ports

Documentation

*DOCSIS 3.1 is a CableLabs standard for high speed Internet access that defines support for up to 10 Gbps downstream and 1 Gbps upstream. Actual cable operator network speeds will vary and will be less than the calculated maximum possible speeds. Actual upload and download speeds are affected by several factors including, but not limited to: the capacity of your cable operator’s network, the services offered by your cable operator, cable and Internet network traffic, your computer equipment etc. Final speeds will also be limited by each device and the quality of its connection to the modem or router.

Modem not working?

Easily troubleshoot your Internet connection using this simple coax testing tool.

Instantly test your coax wiring and outlets for the presence of valid Internet signals from your Cable Internet provider.

Unleash the home network with the high performance CODA5834 Tri-band DOCSIS 3.1 Cable Modem Router with WiFi 6E.
