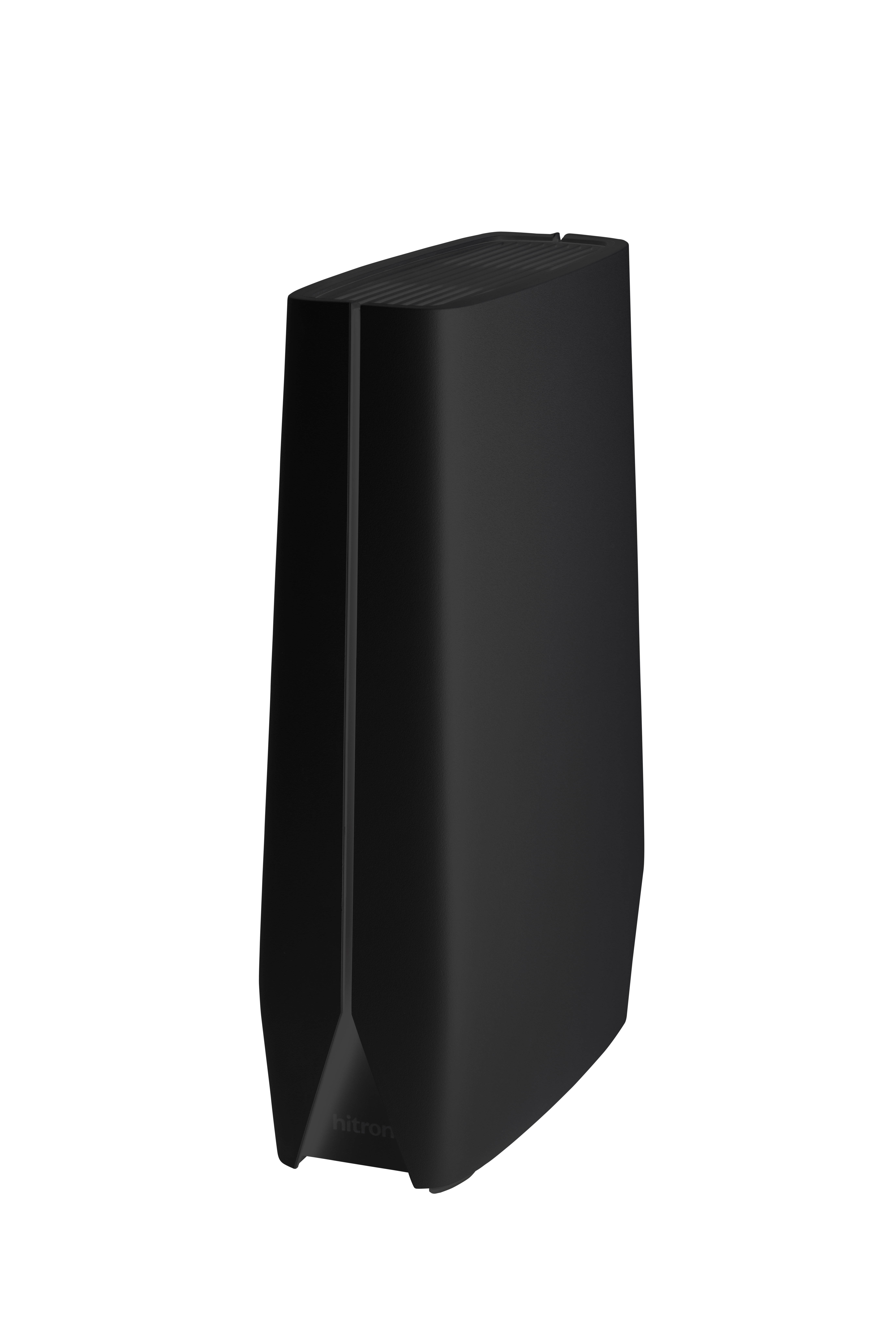

CODA6021

DOCSIS 4.0 Tri-Band Wi-Fi 7 Gateway

The Hitron CODA6021 sets a new benchmark for cable broadband, combining DOCSIS 4.0 Tri-Split technology, Tri-Band Wi-Fi 7, and multi-gigabit wired interfaces into a single platform. Designed for high-performance residential and SMB environments, the CODA6021 delivers symmetrical multi-gigabit speeds, ultra-low latency, and seamless wireless coverage for even the most demanding applications.
Only sold through Service Providers
Contact Sales

Features



DOCSIS 4.0 Tri-Split Technology

Supports 5×7 OFDM/OFDMA channels with switchable upstream splits (5–85 / 5–204 / 5–85+108–396 MHz), extending the life of HFC networks while delivering symmetrical multi-gigabit performance.



Tri-Band Wi-Fi 7

Built on MaxLinear’s latest Wi-Fi 7 platform, the gateway delivers 4×4 radios on 2.4 GHz, 5 GHz, and 6 GHz. Features include 320 MHz channels, 4096 QAM, Multi-Link Operation (MLO), seamless roaming (802.11k/r/v), EasyMesh, and MU-MIMO for low-latency, high-capacity wireless connectivity.



Multi-Gig Ethernet Connectivity

Two 10 GigE and two 2.5 GigE ports distribute DOCSIS 4.0 bandwidth across advanced home networks, PCs, and servers without bottlenecks.



Low Latency DOCSIS

Optimized for gaming, streaming, and real-time applications by dramatically reducing latency over cable broadband.



Carrier-Grade Management

Supports TR-069, TR-369, and full Hitron ecosystem integration (OptiMy, HitronCloud, MyHitron+) for lifecycle management, monitoring, and optimization.



Benefits for Service Providers

  • Future-Proof Deployments: DOCSIS 4.0 extends HFC network investment with multi-gig, symmetrical service delivery.
  • Seamless Wi-Fi 7: Tri-band wireless delivers fiber-like wireless experiences across dozens of devices simultaneously.
  • Reduced Support Costs: Cloud-managed backend tools and remote TR-069/369 provisioning streamline operations.
  • Low Latency Advantage: Differentiates broadband offerings for gamers, streamers, and hybrid work users.
  • Premium Subscriber Experience: Combines speed, coverage, and advanced features into a single, powerful gateway.

Key Specifications

  • DOCSIS Support: DOCSIS 4.0 (5×7 OFDM/OFDMA), DOCSIS 3.0 fallback (32×8)
  • Spectrum: Downstream up to 1794 MHz; Switchable upstream splits 5–85 / 5–204 / 5–85+108–396 MHz
  • Wi-Fi: Tri-Band Wi-Fi 7 – 4×4 2.4 GHz (1.3 Gbps), 4×4 5 GHz (5.7 Gbps), 4×4 6 GHz (11.5 Gbps), 320 MHz channels, 4096 QAM, MLO, MU-MIMO
  • Ethernet Ports: 2× 10 GbE + 2× 2.5 GbE
  • SSID Support: 24 total (8 per radio), individually configurable
  • Routing Features: NAT, IPv4/IPv6, DHCP, firewall with stateful inspection, QoS, IGMP v3 for IPTV, VPN passthrough, DS-Lite, 6RD
  • Security: WPA2, WPA3, Enhanced Open, intrusion detection, content filtering, port/keyword/device filtering
  • Management: TR-069, TR-369, TR-104, TR-143, TR-181, web GUI, MyHitron+ app, HitronCloud integration
  • Design: Fanless, compact gateway with multi-colored LED, reset button, and advanced surge protection

Documentation

DATA SHEET

WiFi 7 Cable Modem Routers

Product
CODA6011UV
CODA6021
DOCSIS Support
Ultra 3.1 (5×2 OFDM/OFDMA) + DOCSIS 3.0 (32×8)
DOCSIS 4.0 (5×7 OFDM/OFDMA) + DOCSIS 3.0 (32×8)
Downstream Spectrum
Up to 1794 MHz
Up to 1794 MHz
Upstream Splits
Switchable 5–85 MHz / 5–204 MHz
Switchable 5–85 MHz / 5–204 MHz / 5–85+108–396 MHz
WiFi
Dual-Band Wi-Fi 7 (4×4 2.4 GHz + 4×4 5 GHz)
Tri-Band Wi-Fi 7 (4×4 2.4 GHz + 4×4 5 GHz + 4×4 6 GHz)
Wired LAN
2× 10 GbE + 2× 2.5 GbE
2× 10 GbE + 2× 2.5 GbE
Voice
2× HD voice ports (SIP & MGCP)
---
*DOCSIS 3.1 is a CableLabs standard for high speed Internet access that defines support for up to 10 Gbps downstream and 1 Gbps upstream. Actual cable operator network speeds will vary and will be less than the calculated maximum possible speeds. Actual upload and download speeds are affected by several factors including, but not limited to: the capacity of your cable operator’s network, the services offered by your cable operator, cable and Internet network traffic, your computer equipment etc. Final speeds will also be limited by each device and the quality of its connection to the modem or router.

Deliver fiber-fast performance over cable with the Hitron CODA6021, a DOCSIS 4.0 tri-band Wi-Fi 7 gateway built for multi-gig speeds, low latency, and seamless connectivity.
